Micro and Nano Scratch Testing Lab
Phone :
Location : , CRF
Facilitator :
For Internal Users - Click Here to apply for Slot
For External Users - Click Here to apply for Slot
Objectives
People
Equipment Details
Scanning Probe Microscope (SPM) [Model: Multiview- 1000TM]
Specification of the Instrument:
- 70 μm AFM/ NSOM Scanner
- 200nm X 200 nm STM Scanner
- Varian Turbo molecular pump and Ion pump
- Nd: YAG Laser for NSOM
- Normal Si AFM and also optical fiber tip
- Liquid Cell Accessories
- Avalanche Photo Diode
- Leica microscope
Manufacturer details: Contact: Nanonics Imaging Ltd.
Malcha
Jerusalem 91487 Israel
Telephone: +972 2678 9573
Email: info@nanonics.co.il
Internet: http://www.nanonics.co.il
Purchase source (funding): Institute plan Grant
Year of installation: 2004
Utility and Working Principal
Sample Details

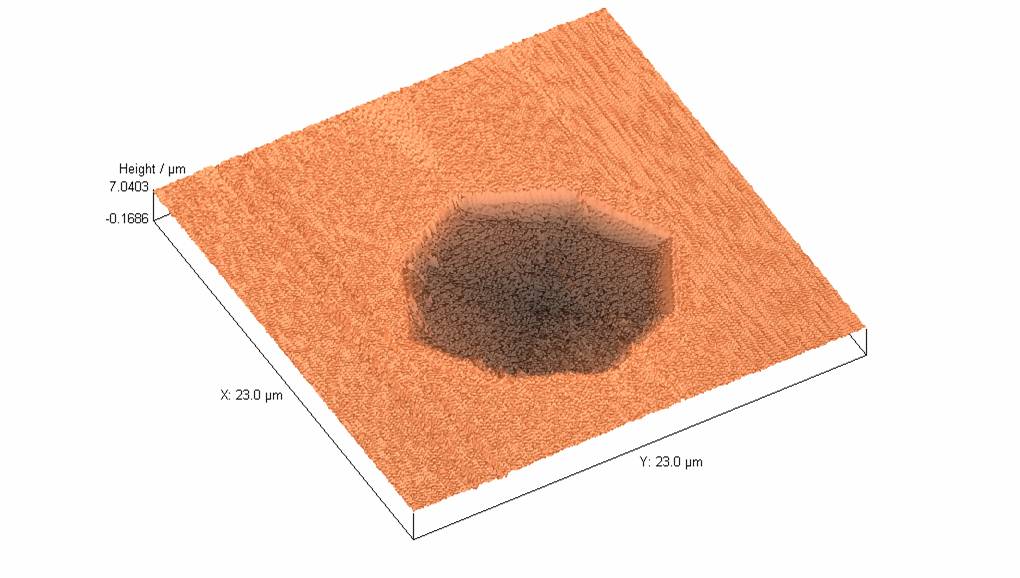

Void in Silicon Carbide thin film
Phase image of a polymer showing polymer chains
Single Layer GO SHEET
PHASE IMAGE OF BCP
PHASE CONTRAST IMAGE
PHASE CONTRAST IMAGE OF RUBBER FILLER COMPOSITE
CNT
PROTEIN SAMPLE
PROTEIN SAMPLE
PROTEIN SAMPLE
3D IMAGE OF CONTROL E. COLI
3D IMAGE OF TREATED E. COLI
PHASE IMAGE OF TISSUE (COLLAGEN)
